IRIS-S460 Mini 316 Stainless IP Dome Camera

  • NEW Marine Grade 316 Stainless Steel Rugged Corrosion Free Case
  • Compatible with Raymarine / Axiom Chart Plotters running LH2 and higher
  • Compatible with Simrad, Lowrance & B&G
  • Compatible with Furuno Software running TZ4.1 and above
  • Garmin Compatibility in conjunction with CMAC Systems
  • Available in High Polish (standard), Brushed or Custom Paint Finish
  • High Definition 1920 x 1080 Resolution
  • Built In Infra Red LED Illumination (10m Range)
  • PoE & 12VDC Connections
  • Extremely Low Power Consumption
  • IP66 Environmental Protection

Description

Iris’s SX60 range of miniature marine grade stainless steel cameras are available in multiple formats and deliver the highest quality video and to suit your application.

The IRIS-S460 is a high definition 3MP IP camera which is directly compatible with Raymarine chart plotters (running LH2 / LH3 software), Navico MFD’s (Simrad, Lowrance, B&Gs) and Furuno Timezero software v4.1 and above. Compatible with Garmin via our CMAC series if switchers, interfaces and recorders.

The IRIS-S460 features built-in Power over Ethernet (PoE) or 12VDC operation and is ONVIF compliant, supporting multiple streams, variable bitrates, a host of image settings – including image mirror and flip, colour, contrast and brightness settings.

Like all models in our 60 range, the cameras are available with a 3.6mm lens offering 80˚ HFOV, with wide-angle 2.1mm lens (110˚ HFOV) and ultra-wide-angle 1.8mm lens (125˚ HFOV) options available.

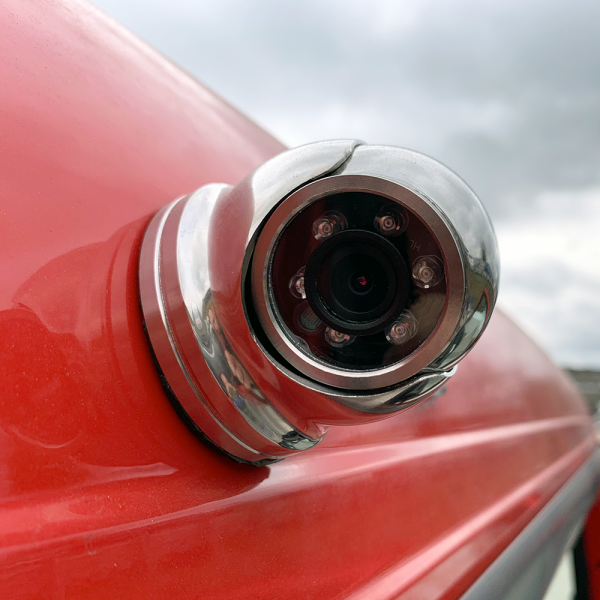

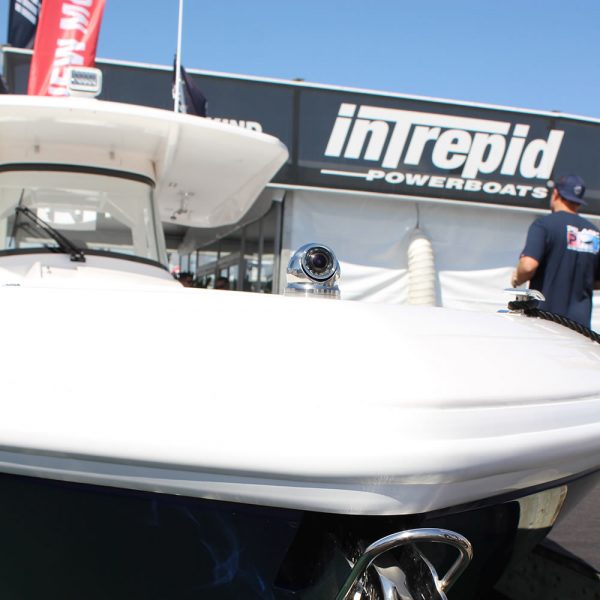

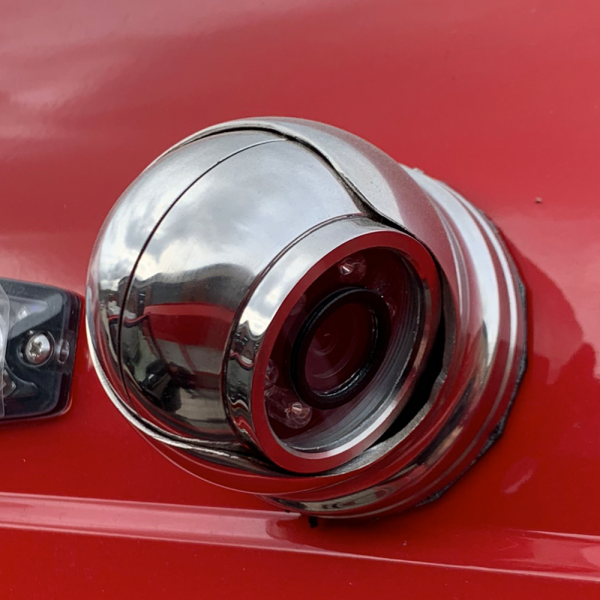

The S460’s 316 stainless steel housing provides the ultimate protection in the harsh marine environment and is, therefore, the perfect solution for deck monitoring aboard workboats, fishing vessels and passenger’s vessels, whilst fitting in equally as well with the high-end aesthetic of luxury vessels and mega yachts.

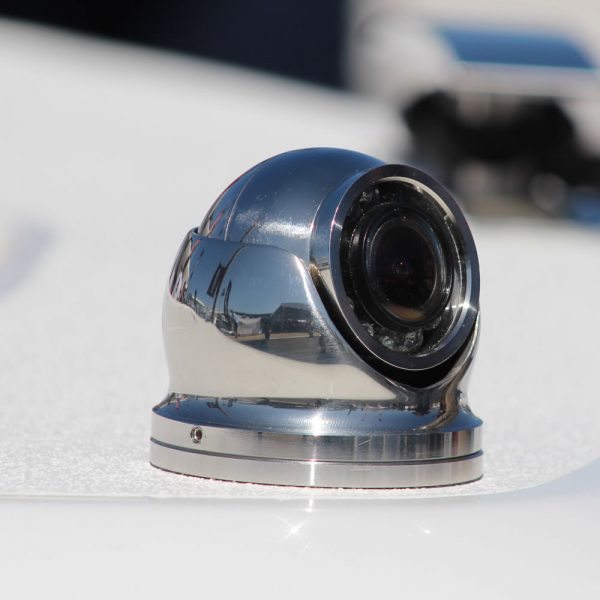

Measuring only 58mm high by 60mm in diameter, the S460 is small enough to provide unobtrusive surveillance and also for use in areas where space is tight, such as engine rooms or anchor wells. Built in infra red LED’s operate automatically via a day/night filter to provide illumination up to 10 meters at night and in low light conditions.

Whether you need high quality and rugged camera as part of your onboard surveillance system, for the engine room, deck and companionway monitoring or as a robust and stylish docking or backup camera, the IRIS-SX60 range of cameras is the perfect solution

Have a question, or require some more information about this product? Simply send us an email using the form below.

    IRISx460 User Guide

    Download

    IRIS-S460 Data Sheet

    Download

    IRIS-Sx60 Base Template

    Download

    IRIS-Sx60 Dimension Drawing

    Download

    IRIS-S460 EU Declaration of Conformity

    Download

    IRIS460, S460, 436, 476, 740 - Guide to Configure on Furuno MFD's

    Download

    How to Configure Iris 460, S460, 436, 476 and 740 cameras on a Furuno MFD - Quick Guide
