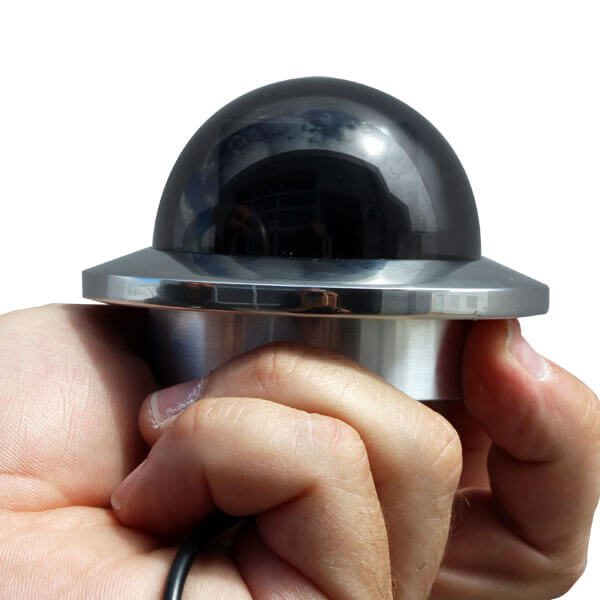

IRIS036 Compact Stainless Dome Camera

  • Stylish, Discreet Design Measuring only 86mmø
  • Marine Grade 316 Stainless Steel
  • High Polish or White Powder Coat Finish Options
  • IP66 Waterproofing
  • High Resolution – 1000TVL
  • UTC Plug In Controller for Extended Feature Set Up
  • 3.6mm Lens (80˚ HFOV) / 2.8mm (120˚) and 1.8mm (154˚) Options Available
  • Easy Installation & Simple Cabling
  • Smoked Privacy Dome
  • Compatible with all Chart Plotters, Monitors, Screens or switching/recording equipment with Composite Video or AV input


For a discreet & stylish static camera solution, the IRIS036 delivers a high end 1000TVL colour camera core in a miniature flush mount housing that has been design especially to offer high quality video & blend in to the boats aesthetic.

With an attractive marine grade 316 bezel available in a choice of high polish (standard) or white powder coat & a heavy smoked dome cover, the camera is small, elegant & unobtrusive. The camera core boasts the highest possible analogue resolution currently available and also features an intuitive integrated on screen menu system to configure set up features such as mirror image, noise reduction and dynamic range settings.

The IRIS036 can be used internally or externally, as a versatile solution for a back up camera, transom camera, to monitor companion ways and decks and of course as part of an on board security system. Advanced WDR processing helps to provide crisp, clear images even in bright sunshine & in scenes of high contrast & heavy reflection.

Installation of the new IRIS036 couldn’t be easier. With a 62mm panel cut out we’ve kept drilling to a minimum. When the camera has been screwed into place, simply position the camera as required using the manually adjustable 2 axis gimble mount and lock into place. When you are done, simply screw the decorative bezel into place.

As well as mirror imaging functions (for rear view cameras), the built in menu system allows configuration of Wide Dynamic Range features, Digital Noise Reduction, Back Light Compensation and many more features that give you the power to set the camera up for your application. An in-line plug in joystick controller is available to perform the set up and this hooks in line with the coaxial video cable.

The New 2017 model IRIS036 is compatible with all chart plotters with composite video inputs, TV’s (via an AV input) and dedicated video monitors.

Have a question, or require some more information about this product? Simply send us an email using the form below.

    IRISx36 Data Sheet


    IRIS036 User Guide


    IRISx36 Series Dimension Drawing
