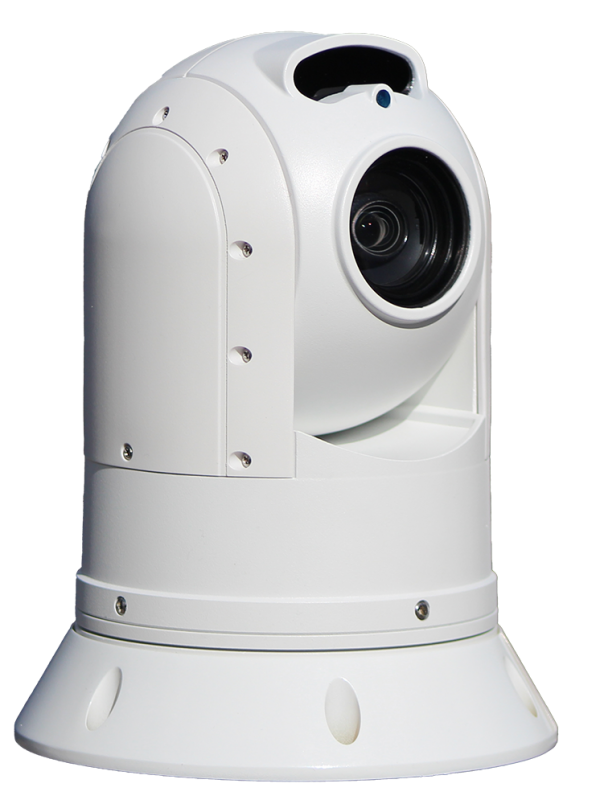

ATOM-A418 Compact Hi-Def IP PTZ Camera

  • Visible Spectrum Camera 2MP HD Resolution 30x Optical Zoom

  • Miniature – Lightweight Compact Form Factor

  • Dimensions 206mm x 160mmø / 2Kg Weight

  • High Power Infrared LED’s – Up to 100m Range

  • True Day/Night Operation with IR Cut Switch

  • Up to 255 User Presets Supported

  • 4 x User Definable Patrols

  • User Definable Home Position

  • Side mount or Rear mount Waterproof Cable Connector

  • Push Lock Quick Connector – IP66

  • Features IP and RS485 Serial Data Control

  • 750mA @ +12VDC Power / 8.4W

  • IP66 Environmental Rating

  • Available in White, Black as Standard – Other Colour Options Available


Introducing the new Atom Range, A418 High Definition Visible Spectrum IP PTZ camera with 30x Optical Zoom from Iris Innovations.

Available with side entry or base entry cable options, the A418’s high definition camera module isbuilt into a robust yet compact waterproof gimbal mount enclosure, designed to protect the unit from the harshest environmental conditions.

The A418 features a high end network camera module with leading digital image processing features such as noise reduction, image enhancement, wide dynamic range technology and boasts a powerful 30x optical zoom lens to identify targets at extreme distance.

An array of high power infra red LED illuminators is built into the brow of the camera to provide visibility in the dark to a range of up to 100 meters. The cameras image processing features work to boost the image gain in order to provide maximum clarity in low light.

As well as offering ultra-responsive pan and tilt control with proportional zoom operation, the camera boasts up to 255 user preset positions and a range of scans and user configurable automated tours.

An RS485 Serial Data connection is also provided to maximise control options, meaning as well as via an NVR or computer, the camera can also be controlled from Iris’s CMAC range of camera management systems or CCTV joystick controllers supporting the Pelco-D protocol.

With its rugged, compact footprint and extremely competitive pricing, our new IP PTZ cameras are the perfect solution for vessels of all types and sizes and our industry leading thermal imaging technology opens up a world of boating at night in safety.

The A4418 camera is both ONVIF compliant and NDAA compliant.

Have a question, or require some more information about this product? Simply send us an email using the form below.

    ATOM Series Mounting Template


    Base drawing / Mounting Template for Atom Series Cameras: A295, A395, A418 and A118 models.

    IRIS-A418 Product Data Sheet


    IRIS-A418 ATOM IP PTZ Product Data Sheet
