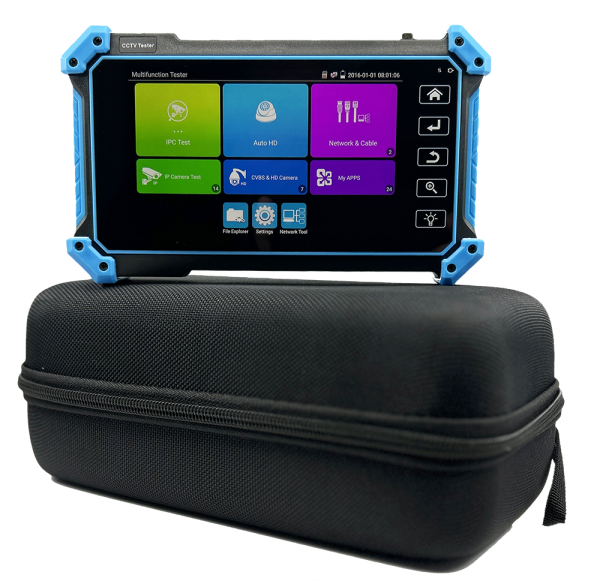

IRIS996 Portable CCTV Camera Tester IP/CVBS/TVI/CVI

  • Test CVBS, AHD, HD-TVI & HD-CVI Analogue Formats

  • Test IP Cameras

  • The Perfect Tool for Fault Finding & Commissioning CCTV Systems
  • 7” Responsive Touch Screen

  • Android Operating System

  • Built-In SD Card Recorder

  • Battery Powered with +12VDC Output

  • Built in Flash Light

  • Auto-Sensing PAL / NTSC Formats

  • HDMI Video Input and Output

  • RS485 Serial Data (Multi Protocol) for PTZ Control

  • Supplied with all necessary cables in Hard Clam-Shell Case

Description

The IRIS996 CCTV Tester is the essential tool for IRIS dealers and anyone

installing CCTV cameras – be they analogue, AHD or IP.

Featuring a 7” high bright touchscreen, the unit hosts an intuitive touch

controlled interface designed to provide configuration, commissioning

and fault finding features for all types of CCTV cameras (analogue

CVBS, AHD, TVI, CVI and IP cameras). There is also an HDMI input

and colour bar generator for testing external monitors, recorders and

switchers.

Powered by a rechargable Lithium Ion battery for maximum portability,

the IRIS996 features an auxiliary 12VDC output so you can also test

cameras locally, powering from and viewing/controlling with the Tester.

The IRIS996 features extensive network testing and configuration tools,

CAT5 cable tester, and many other essential networking tools. Discover

and configure IP addresses, set authentication and test network

speeds.

Use the tester with analogue of analogue HD formats such as AHD,

HD-TVI and HD-CVI to check video formats. The unit also auto-senses

PAL and NTSC video formats.

As well as testing and recording video inputs, the IRIS996 also features

a multi-protocol RS485 serial data port to drive PTZ cameras. Many of

the industries most common protocols are supported, including Pelco

D and its possible to congure parameters such as baud rate and data

parity. IP PTZs can also be controlled via the touch screen interface.

As the IRIS996 also boasts a built in SD card recorder, its also possible

to record video footage for analysis and to show your clients.

Supplied in a handy clam-shell case, the IRIS996 and its cables and

accessories pack down conveniently into a hard wearing and compact

package making it the perfect tool to assist you on your installation.

Have a question, or require some more information about this product? Simply send us an email using the form below.

    IRIS996 CCTV Tester Data Sheet
